1970 Mopar B - Body Muscle Car Exhaust Systems
For the 1970 Model year we concentrate our interest on all three of the1970 model Mopar Muscle Car Exhaust Systems the 426 system comes with the correct 2 1/2" H - Pipe with correct flats for the torsion bar, correct welded on heat nipple, correct welded in cross over pipe, correct flanges our H - Pipe necks down to 2 1/ 4" where it goes into the muffler because that is the way it was done. The tail pipes on the HEMI cars used a 2 1/4" tail pipe with a resonator on the end. We have reproduced the resonator and tail pipe. A chrome tip was used on the hemi cars to give the tail pipe that finished look.

440 Exhaust System

Our 1970 440 Exhaust System comes with the correct 2 1 /2" H - Pipe with correct flats on the bottom and correct flat on the left side for the torsion bar. This system also includes the correct welded on flanges and cross over pipe. Like the HEMI system this H - Pipe is necked down to 2 1/4" where it goes into the muffler. The tail pipes on the 440 cars came 2 ways the standard tail pipe was a 2 1/4" tail pipe that reduced to 2" after it went over the axle and was angle cut at the end. This system is referred to as a non decor package. The decor package used a 2 1/4" tail pipe that was expended at the end and slit to accept a chrome tip. This was standard on the GTX and was on option on other B - Body cars of this year.

383 Exhaust System

Our 1970 383 Exhaust System comes with the correct 2 1/4" head pipes with correct welded on flanges there were no flats in the 383 pipes. The tail pipes on the 383 were either the decor package tail pipe or the non decor package as made reference to above n the 440 system.

Components:

Any of the systems listed above come with the correct style mufflers dated coede with correct flats on the side, correct loop or non loop hangers (383), correct rounded bottom style mopar clamps, installation instructions, diagrams and sealant. Decor package tail hangers are available as well as Chrome Tips. Ask about our concours show package for those of us who like it a little more real than real.

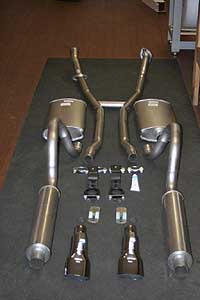

1968-1970 Hemi System 1968 - 1970 383 Non Decor System



1970 Hemi Charger Restored By Jeff's Resurections Equipped With Gardner Exhaust

1970 GTX 440 Restored By Jeff's Resurrections Equipped With Gardner Exhaust



1970 Plymouth 440 Superbird Owend by Todd Harroun Equipped With Gardner Exhaust

1970 Roadrunner 383 Restored by Custom Cars Unlimited Equipped With Gardner Exhaust
1970 B - Body 383 Left and Right Head Pipes Next To Gardner Reproduction

1970 B - Body 440 H - Pipe Next To Gardner Reproduction

1966 - 1970 Hemi H - Pipe Nex To Gardner Reproduction


1968 - 1970 Mopar B - Body Decor Tail Pipe Next To Gardner Reproduction


1968 - 1970 Mopar B - Body Non Decor Tail Pipe Next To Gardner Reproduction


"
1966 - 1969 Mopar B - Body Muffler Hangers
Although this hanger is not our reproduction we do offer a very similar hanger that comes as part of our kit along with the correct u - nut and screwt. This hanger is a dead on ringer to the original piece that outfitted these cars and is an option with any of our 1966 - 1969 426 or 440 exhaust systems

1968 - 1970 Mopar B - Body Charger Hangers
The hangers pictured here are the correct tail pipe hangers for all the 1968 - 1970 mopar b - bodies Chargers with the decor package chrome tips. These hangers are not our reproduction but we have compared them to originals and they are very nice. We offer them with any of our 1968 - 1970 mopar b - body Charger decor package exhaust systems


1968 - 1970 Mopar B - Body Except Charger Tail Hangers:
The hangers pictured here are the corect tail pipe hangers for all the 1968 - 1970 mopar b - bodies with tne decor package chrome tips. These hangers are not our reproduction but we have compared them to originals and they are very nice. We offer them with any of our 1968 - 1970 mopar b - body decor package exhaust systems






1970 2 1/4" Q-Clamps

The clamp pictured here is the correct clamp used on the 1970 Mopar B-Body exhaust system to attach the chrome tips to the tail pipes. Our clamps have been reproduced fron the orignal pictured here and come zinc plated for longevity
