The 1969 Chevelle SS Stock system kit featured below comes 14 ga aluminized with the correct 2 1/2" head pipes with correct wrinkle bends and flats, extensions, donuts, correct chevy big block flanges, correct 5-9 oval mufflers, correct 2 1/4" tail pipes, front hangers, clamps, installation instructions, diagrams and sealant. We offer reproduction tips, GM heat riser and ss stud kit to complete the assembly. And for those of you who want to ratchet it up a bit stainless steel clamps, zinc plated hangers, ceramic coated flanges, zinc plated retainers accompany our concours show kit
Ask about our Performance package if you are more concerned about a little more flow than being technically correct.
|
|
| |
| 1969 Chevelle SS Stock Exhaust Kit |
|
1969 Chevelle SS Equipped With Gardner Exhaust |
|
|

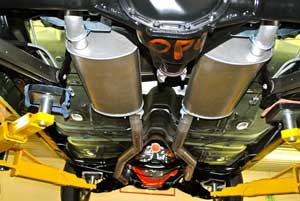

1969 Yenko Chevelle Restored by Super Car Workshop Equipped With Gardner Exhaust
|
1968 - 1972 GM A- Body Front Hanger
These hangers are correct for 1968-1972 GM A-Body Exhaust Systems.For the longest time the only hangers available were actually for the 1964 - 1967 GM A body's. Alltough th hangers look extemely similar and will work just fine That is not good enough for Gardner. The hangers you see here are identilcle reprodutions of the unique 1968 to 1972 GM A body hangers. They have been painstakenly reproduced from our originals and come zinc plated hand built with lthe correct corded rubbers and button head rivets, zinc plated retainers and correct screws. They come standard with our 1968-1972 GM A body exhaust systems and are a Gardner Exclusive reproduction.
|
 |
|
|
|
1964 - 1972 GM A - Body Retainer
These retainers were used on the GM A - Body Muscle cars on the muffler hangers. The attaching screw first went through this reatiner and then through the rubber. The reatainer functioned as a washer to protect the rubber on the hanger. Our retainers have been reproduced from the orginal in the picture and come zinc plated. They are a Gardner EXhaust exclusive reproduction and come standard with our concours show pkg. or can be optioned for with one of our entire systems.
|
 |
|
| |
1969 Chevelle SS Tail Pipe Hangers
These hangers are a Gardner Exhaust Exclusive Reproduction. Original hangers accomplished two things, they not only hung the tail pipe, they clamped down on the chrome extensions as well. Our hangers are reproduced from original hangers come zinc plated, built with corded rubbers and our reproduction button head rivets. These hangers will have the correct J hooks to hook over the frame rail as original. These hangers are an option with our standard chevelle systems and come as part of the chambered system package.
|
 |
|
| |
1969 - 1972 Chevelle SS Tips
Althogh these tips are not one of our own reproductions they are an excellent copy of the original tip in the picture to the right. From the research we have done original tips on the early 69 Chevelle SS actually had a rolled tips but this was done away with after trapped water caused the tips to rust. Original tips did not have a part number, however, NOS tips do. These reproduction tips do not have any stampings and are as close to factory as possible. They are an option with our 69 -72 SS Chevelle Systems.
|
 |
|
|
|
